Solar Panel Collecting Power for a Class B Camper Van

RV AC Solar Panel Guide: How Many Panels Needed?

Air conditioning is essential during hot summer months, especially when you’re traveling in an RV. However, air conditioning units require a lot of electricity to run, making them difficult to power with solar energy alone. In this post, we’ll explore how many solar panels you need to run your RV AC and provide some tips on powering your air conditioner with solar.

To power an RV air conditioner with solar, you’ll need a solar system that includes solar panels, a solar charge controller, an inverter, and surge power protection. Solar panels capture sunlight energy and convert it into electricity that can be used to power appliances like air conditioners. The solar charge controller regulates the amount of electricity going into the battery bank so that it doesn’t overcharge or undercharge. The inverter converts DC power from the battery bank into AC power for use by your appliances. Surge power protection protects your appliances from damage caused by sudden spikes in voltage.

The number of solar panels you need depends on several factors such as the size of your RV’s AC unit and how often you use it. On average, a 13,500 BTU air conditioner requires around 1500 watts of AC power to start up and around 600-700 watts to keep running. To generate this much power using solar energy alone would require multiple large solar systems which may not be practical or cost-effective for most RV owners.

However, there are some ways to reduce the initial surge of power needed to start an air conditioner making it easier to run on solar power. Soft starters are devices that help reduce the initial surge of current needed by an AC unit when starting up. This can make it possible for smaller or fewer numbers of panels to handle the load.

Understanding the energy needs of an RV air conditioner

RV air conditioners are essential for keeping the interior of your RV cool and comfortable, especially during hot summer months. However, they have high energy needs due to their power usage. Understanding the energy needs of your RV air conditioner is crucial for ensuring that you have enough power to run it while on the road.

Energy Consumption Measured in Watts or Kilowatt-Hours (kWh)

The energy consumption of an AC unit is measured in watts or kilowatt-hours (kWh). The wattage indicates how much power an AC unit requires to operate. The starting wattage of an RV air conditioner is higher than its running wattage. This is because the AC compressor requires more electricity to start up than it does to keep running.

Efficiency Affects Energy Needs

The efficiency of an AC unit affects how much energy it needs to operate. More efficient units require less power, while less efficient units require more power. When considering purchasing a new RV air conditioner, look for one with a high SEER rating (Seasonal Energy Efficiency Ratio) as this will indicate that it’s more efficient and will consume less energy.

Determining Power Needs

To determine the power needs of your RV AC, you need to consider its wattage and usage time. For example, if your AC unit has a running wattage of 1,000 watts and you plan on using it for four hours per day, then you’ll need a battery bank with at least 4 kWh capacity (1,000 watts x 4 hours = 4 kWh). It’s important to note that this calculation only takes into account the energy needed by the AC unit and not any other appliances or devices that may be running simultaneously.

BTUs

Another factor to consider when choosing an RV air conditioner is its BTU (British Thermal Unit) rating. This measures how much heat an AC unit can remove from a space per hour. The larger your RV, the higher BTU rating you’ll need to effectively cool the interior.

Calculating the number of solar panels needed to run an RV air conditioner

Use a Solar Panel Calculator to Determine the Number of Panels Needed

One of the most important factors in determining how many solar panels you’ll need to run your RV air conditioner is the wattage of the air conditioner. However, it’s not just about the AC unit alone. You also need to factor in other energy needs in your RV, such as lights, appliances, and electronics.

To calculate how many solar panels you’ll need, you can use a solar panel calculator. These calculators take into account your location, the amount of sunlight available in that location throughout the year, and your energy needs. Once you input all of this information, the calculator will give you an estimate of how many solar panels you’ll need to power your RV.

Consider the Wattage of Your RV Air Conditioner When Calculating

As mentioned earlier, one of the most important factors when calculating how many solar panels you’ll need is the wattage of your RV air conditioner. The higher the wattage, the more power it will require to run.

For example, if your RV air conditioner has a wattage rating of 1,500 watts and you plan on running it for 8 hours per day during peak summer months (June-August), then it will consume approximately 12 kWh (kilowatt-hours) per day. This means that you would need at least four 300-watt solar panels to generate enough power to run your AC unit for those eight hours each day.

Take Into Account Sunlight Availability in Your Location

Another crucial factor when calculating how many solar panels are needed is sunlight availability in your location. If you live in an area with lots of sunshine throughout the year like Arizona or New Mexico where there are over 300 sunny days per year or Florida which averages around 230 sunny days per year then fewer panels may be required than if living somewhere with less sun exposure like Seattle which only averages about 71 sunny days per year.

It’s important to note that solar panels are most efficient when they receive direct sunlight, so if you’re parked in a shaded area or have cloudy weather often, you may need additional panels to compensate for the lack of sunlight.

Don’t Forget to Factor in Other Energy Needs in Your RV

When calculating how many solar panels you’ll need, it’s essential not to forget about other energy needs in your RV. These can include lights, appliances, and electronics such as TVs and laptops. It’s crucial to account for all of these items’ power usage when determining how many solar panels you’ll need.

Determining the minimum battery bank size required for RV air conditioning

Calculating the right battery bank size is essential when running an RV air conditioner. The battery bank must provide enough power to run the air conditioning unit and other electrical appliances in your RV. Here are some factors to consider when determining the minimum battery bank size required for RV air conditioning.

Determine the RV Air Conditioner’s Power Consumption in Amps

The first step is to determine how many amps your RV air conditioner consumes per hour. You can find this information in the appliance manual or on its nameplate. Typically, most RV air conditioners require between 13 and 16 amps to operate, but this may vary depending on your unit’s size and age.

Calculate the Battery Capacity Needed Using Amp-Hour Rating

Once you know how many amps your AC unit requires, you can calculate how much battery capacity you need using amp-hour rating (Ah). To do this, multiply the AC unit’s hourly amperage by the number of hours you plan to use it each day. For example, if your AC unit requires 15 amps per hour and you plan to use it for four hours each day, then you will need a minimum of 60 Ah of battery capacity.

Lithium Batteries Have a Higher Current Capacity and Are More Efficient

While lead-acid batteries are commonly used in RVs due to their affordability, lithium batteries have a higher current capacity and are more efficient. Lithium batteries also last longer than lead-acid batteries as they can be discharged deeper without damaging them. If you’re looking for a long-term investment that will save you money in the long run, lithium batteries are worth considering.

Consider Voltage When Sizing Your Battery Bank for an RV Air Conditioner

The voltage of your battery bank is another critical factor to consider when sizing it for an RV air conditioner. Most modern AC units require at least 12 volts to operate. If you plan to use a 12-volt AC unit, you will need a 12-volt battery bank. However, if your AC unit requires more voltage, like some of the larger models that require 24 volts, then you will need to size your battery bank accordingly.

The Size of the Battery Bank Needed Depends on the Length of Time the Air Conditioner Will Be Used

Finally, the size of your battery bank depends on how long you plan to use your air conditioner each day and how much power other appliances in your RV consume. If you plan to run your AC unit for several hours each day and have other power-hungry appliances like a refrigerator or microwave oven, then you will need a larger battery bank.

Selecting a secure mounting hardware for solar panels on an RV

MPPT Charge Controllers: Better Efficiency and Performance

Using MPPT charge controllers is a must. These controllers maximize the efficiency and performance of your solar panels by converting the voltage output from the panels to match the voltage of your electrical panel. This results in more power being delivered to your battery bank, which means you can run your RV’s appliances for longer periods without having to worry about running out of power.

Rain Guards: Protection Against Water Damage

Another important consideration when choosing a secure mounting hardware kit for your solar panels is protection against water damage. Rain guards are an excellent option as they provide a barrier between the panels and any moisture that may come into contact with them. This is particularly important if you plan on traveling in areas with high humidity or frequent rainfall.

Secure Mounting Hardware Kit: Connectors, Fuses, and Bolts

Choosing a secure mounting hardware kit with connectors, fuses, and bolts is crucial for ensuring a safe installation. The connectors should be high-quality and able to withstand extreme temperatures and weather conditions. Fuses are essential as they protect your electrical system from overloading or short circuits. Bolts should also be durable and rust-resistant to ensure that they hold up well over time.

In addition to these components, consider purchasing additional items such as tarps or window moldings to further protect your solar panels from damage during travel.

When shopping for a secure mounting hardware kit for your solar panels on an RV, do some research online before making a purchase. Look for reviews from other RVers who have installed similar systems on their vehicles and compare prices across different retailers. By taking the time to select the right components for your system, you can enjoy reliable and efficient power on the road for years to come.

Choosing a vent-free portable air conditioner for RVs

RV air conditioners are an essential part of van life, especially during hot summer months. However, not all RVs have roof vents or windows to accommodate traditional window air conditioners. This is where vent-free portable air conditioners come in handy. In this section, we will discuss the benefits of choosing a vent-free portable air conditioner for your RV and how to select the best one.

The Benefits of Vent-Free Portable Air Conditioners

Vent-free portable air conditioners are an excellent option for RVs without roof vents or windows. These units do not require any external ventilation and can be placed anywhere inside your RV. They are compact and easy to move around, making them perfect for small spaces like RVs. They are energy-efficient and consume less power than traditional window units.

Selecting the Best Vent-Free Portable Air Conditioner

When selecting a vent-free portable air conditioner for your RV, there are several factors you need to consider. First and foremost is the BTU rating of the unit. Most RV ACs range from 5,000 to 15,000 BTUs, so it’s important to choose one that matches the size of your space. A higher BTU rating means more cooling power but also consumes more energy.

Another factor to consider is proper ventilation. While vent-free portable air conditioners do not require external ventilation, they still need proper internal ventilation to prevent moisture buildup and ensure efficient cooling in your RV. Make sure you choose a unit with adjustable louvers that allow you to direct cool air where it’s needed most.

Lastly, consider the noise level of the unit when it’s running. You don’t want a noisy AC disturbing your peace while you’re trying to relax in your RV. Look for units with low decibel levels or those that come with noise-reducing features like insulated compressor compartments.

Comparing roof-mounted vs ground-mounted solar panels for an RV

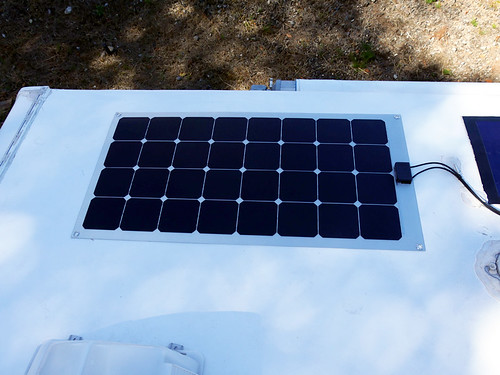

Lensun 100 Watt Flexible Solar Panel
Lensun 100 Watt Flexible Solar Panel

Roof-mounted vs Ground-mounted Solar Panels for an RV

Roof-mounted solar panels are the most common type of solar array found on RVs. This is because space is limited, and the roof provides ample square footage for solar panels to be installed. However, there are some downsides to roof-mounted panels that may make ground-mounted panels a better option for some RVers.

Ground-mounted solar panels require more space than roof-mounted ones and can be positioned for optimal direct sunlight. This means that if you frequently camp in free campsites where you have more room to set up your solar array, then ground-mounted panels could be a better option for you. Boondockers who rely heavily on their solar power system will benefit from having ground-mounted panels as they can position them to face the sun directly, which will increase their energy output.

MPPT charge controllers can also increase the efficiency of your solar array during peak sun hours. These controllers optimize the voltage output of your solar panel system so that it matches the battery bank’s voltage requirements. This means that more energy is transferred from the solar panels to your batteries during peak sun hours when there is more energy available.

Rain and shade can impact the performance of roof-mounted solar panels. When it rains, water droplets can create a film over your panel’s surface, which reduces its ability to absorb sunlight. Shading from trees or other objects can significantly reduce your panel’s effectiveness as well.

When it comes down to cost, roof-mounted systems are generally less expensive than ground-mounted systems since they don’t require additional materials like mounting brackets or posts. However, if you’re looking for maximum efficiency and have enough space available at your campsite, then ground-mounting might be worth considering.

Step-by-step guide for installing solar panels on an RV and running air conditioning off solar power

Determining the Required Specifications for Your Solar Installation

Before installing solar panels on your RV to run your air conditioning system, it is important to determine the required specifications for your solar installation. This includes the number of solar panels needed, as well as the charge controller and amps required to power your AC system.

To begin, consider how many hours per day you plan on running your AC system. This will impact the number of solar panels needed to generate enough power to meet these demands. Think about the size of your RV’s windows and how much sunlight they receive throughout the day. This will help determine where to position your solar panels on the roof of your RV for maximum sunlight exposure.

Next, calculate how many amps are needed to run your AC unit. This can typically be found in the manufacturer’s specifications or by consulting with a professional installer. Once you have determined this information, you can select an appropriate charge controller that can handle this amount of power and regulate its flow between your battery bank and AC system.

Installing Solar Panels on Your RV

Once you have determined the necessary specifications for your solar installation, it is time to install the solar panels on the roof of your RV. It is important to ensure they are wired correctly and positioned in a way that maximizes their exposure to sunlight throughout the day.

Begin by cleaning off any debris or dirt from the roof of your RV where you plan on installing the solar panels. Next, attach mounting brackets onto each panel and place them in their desired location on top of your RV’s roof. Be sure to secure them tightly so they do not shift during travel.

After positioning each panel correctly, connect them together using wiring designed specifically for use with solar installations. Run these wires down through a designated entry point into your RV where they can be connected directly into a charge controller.

Connecting Your Charge Controller

Finally, connect your charge controller directly into both your battery bank and AC system. This will allow it to regulate the flow of power and prevent overcharging or damage to your system.

It is important to ensure all connections are properly wired and secured before powering on your AC system for the first time. Be sure to monitor your solar installation regularly to ensure it is functioning properly and meeting your energy needs.

The benefits and drawbacks of running RV air conditioning off solar power

Running RV air conditioning off solar power has its benefits and drawbacks. On the one hand, it provides a sustainable and cost-effective solution for powering your RV’s air conditioner without relying on traditional energy sources. On the other hand, it requires a significant investment in equipment and installation costs, as well as careful planning to ensure that you have enough solar panels and battery capacity to meet your energy needs.

One benefit of running RV air conditioning off solar power is that it allows you to enjoy the comforts of home while traveling without adding to your carbon footprint. Solar power is a clean source of energy that does not emit harmful pollutants into the environment. Once you have installed your solar panels and battery bank, you can enjoy free electricity for years to come.

Another benefit is that using solar power can save you money in the long run. While the initial investment in equipment and installation costs may be high, over time, you will see a return on your investment as you no longer need to pay for traditional energy sources.

However, there are also some drawbacks to consider when using solar power for RV air conditioning. One major drawback is that it requires careful planning and monitoring of your energy usage. You need to make sure that you have enough solar panels and battery capacity to meet your energy needs while still being mindful of how much energy each appliance uses.

Another drawback is that installing solar panels on an RV can be challenging due to limited space and weight restrictions. You will need to choose between roof-mounted or ground-mounted systems based on your available space and personal preferences.
